產品選型表

展開過濾器

Part Number	Power Switch	IOH/IOL (A)	Output VCC/VDD (V)	Input VCC (V)	Prop. Delay（ns）	Input Config	Program Deadtime	Overlap Protection	CMTI (kV/μs) Min.	VISO(Vrms)	Operating Temp （℃）	Package Group	Packing/QTY	Download

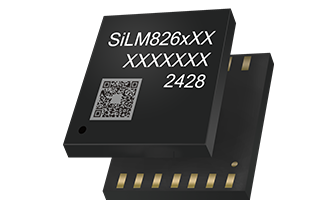

SiLM826x系列（雙通道死區可編程的 30V, 10A 隔離驅動）														下載
SiLM8260ADCS-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	13.6 ~ 30	3.5-18	80	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP18W	Reel/1500
SiLM8260ABCS-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	9.1 ~ 30	3.5-18	80	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP18W	Reel/1500
SiLM8260AACS-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	6 ~ 30	3.5-18	80	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP18W	Reel/1500
SiLM8260AGCS-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	4 ~ 30	3.5-18	80	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP18W	Reel/1500
SiLM8260ADCS-AQ	IGBT/MOSFET/SiC/GaN	10.0/10.0	13.6 ~ 30	3.5-18	80	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP18W	Reel/1500
SiLM8260ABCS-AQ	IGBT/MOSFET/SiC/GaN	10.0/10.0	9.1 ~ 30	3.5-18	80	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP18W	Reel/1500
SiLM8260AACS-AQ	IGBT/MOSFET/SiC/GaN	10.0/10.0	6 ~ 30	3.5-18	80	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP18W	Reel/1500
SiLM8260AGCS-AQ	IGBT/MOSFET/SiC/GaN	10.0/10.0	4 ~ 30	3.5-18	80	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP18W	Reel/1500
SiLM8263GAHB-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	4 ~ 30	3 ~ 18	80	VIA/VIB	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8263AAHB-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	6 ~ 30	3 ~ 18	80	VIA/VIB	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8263BAHB-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	9.1 ~ 30	3 ~ 18	80	VIA/VIB	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8263DAHB-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	13.5 ~ 30	3 ~ 18	80	VIA/VIB	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8264GAHB-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	4 ~ 30	3 ~ 18	80	PWM	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8264AAHB-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	6 ~ 30	3 ~ 18	80	PWM	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8264BAHB-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	9.1 ~ 30	3 ~ 18	80	PWM	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8264DAHB-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	13.5 ~ 30	3 ~ 18	80	PWM	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8265GAHB-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	4 ~ 30	3 ~ 18	80	VIA/VIB	-	-	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8265AAHB-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	6 ~ 30	3 ~ 18	80	VIA/VIB	-	-	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8265BAHB-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	9.1 ~ 30	3 ~ 18	80	VIA/VIB	-	-	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8265DAHB-DG	IGBT/MOSFET/SiC/GaN	10.0/10.0	13.5 ~ 30	3 ~ 18	80	VIA/VIB	-	-	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM825x系列（雙通道死區可編程的 40V, 4A 隔離驅動器）														下載
SiLM8253BDCG-DG	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8253DDCG-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8254BDCG-DG	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8254DDCG-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8255BDCG-DG	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8255DDCG-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8253BDCP-DG	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8253DDCP-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8254BDCP-DG	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8254DDCP-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8255BDCP-DG	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8255DDCP-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8253BBCL-DG	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	VIA/VIB	Y	Y	100	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8253DBCL-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	VIA/VIB	Y	Y	100	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8254BBCL-DG	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	PWM	Y	Y	100	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8254DBCL-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	PWM	Y	Y	100	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8255BBCL-DG	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	VIA/VIB	-	-	100	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8255DBCL-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	VIA/VIB	-	-	100	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8253BDCG-AQ	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8253DDCG-AQ	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8254BDCG-AQ	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8254DDCG-AQ	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8255BDCG-AQ	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8255DDCG-AQ	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8253BBCL-AQ	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	VIA/VIB	Y	Y	100	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8253DBCL-AQ	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	VIA/VIB	Y	Y	100	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8254BBCL-AQ	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	PWM	Y	Y	100	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8254DBCL-AQ	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	PWM	Y	Y	100	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8255BBCL-AQ	IGBT/MOSFET/SiC	4.0/7.0	9 ~ 40	3 ~ 18	40	VIA/VIB	-	-	100	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8255DBCL-AQ	IGBT/MOSFET/SiC	4.0/7.0	13.5 ~ 40	3 ~ 18	40	VIA/VIB	-	-	100	3000	–40 ~ 125	SOP16	Reel/3000

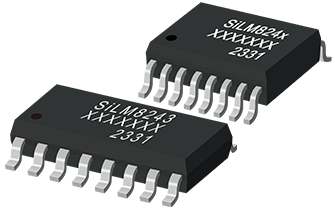

SiLM824x系列（雙通道死區可編程的 33V, 4A 隔離驅動）														下載
SiLM8243BBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	9-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243ABCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243GBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243DBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244BBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	9-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244ABCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244GBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244DBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245BBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	9-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245ABCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245GBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245DBCL-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243ABCG-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8243GBCG-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8244ABCG-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8244GBCG-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8245ABCG-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8245GBCG-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8243ABCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8243GBCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8244ABCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8244GBCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8245ABCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8245GBCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8245DBCP-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8243BBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	9-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243ABCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243GBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243DBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	VIA/VIB	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244BBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	9-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244ABCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244GBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8244DBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	PWM	Y	Y	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245BBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	9-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245ABCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245GBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8245DBCL-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	48	VIA/VIB	-	-	150	3000	–40 ~ 125	SOP16	Reel/3000
SiLM8243ABCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8243GBCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8244ABCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8244GBCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8245ABCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8245GBCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM8243ABCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8243GBCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8244ABCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8244GBCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	PWM	Y	Y	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8245ABCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8245GBCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	48	VIA/VIB	-	-	150	5000	–40 ~ 125	SOP14W	Reel/1500
SiLM8246GAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	45	VIA/VIB	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8246AAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	45	VIA/VIB	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8246BAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	9.1-33	3-18	45	VIA/VIB	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8246DAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	45	VIA/VIB	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8247GAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	45	PWM	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8247AAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	45	PWM	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8247BAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	9.1-33	3-18	45	PWM	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8247DAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	45	PWM	Y	Y	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8248GAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	4-33	3-18	45	VIA/VIB	-	-	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8248AAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	6-33	3-18	45	VIA/VIB	-	-	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8248BAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	9.1-33	3-18	45	VIA/VIB	-	-	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SiLM8248DAHB-DG	IGBT/MOSFET/SiC/GaN	4.0/6.0	13.5-33	3-18	45	VIA/VIB	-	-	150	2500	–40 ~ 125	LGA5X5-13	Reel/5000
SLMi823x系列（雙通道死區可編程的 40V, 1A/4A 隔離驅動器）														下載
SLMi8230BDCG-DG	IGBT/MOSFET/SiC/GaN	1.0/1.5	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8230DDCG-DG	IGBT/MOSFET/SiC/GaN	1.0/1.5	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8231BDCG-DG	IGBT/MOSFET/SiC/GaN	1.0/1.5	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8231DDCG-DG	IGBT/MOSFET/SiC/GaN	1.0/1.5	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8232BDCG-DG	IGBT/MOSFET/SiC/GaN	1.0/1.5	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8232DDCG-DG	IGBT/MOSFET/SiC/GaN	1.0/1.5	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233BDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233DDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234BDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234DDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235BDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235DDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233HBDCP-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8233HDDCP-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8234HBDCP-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8234HDDCP-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8235HBDCP-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8235HDDCP-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8233HBDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233HDDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234HBDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234HDDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235HBDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235HDDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233BDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233DDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234BDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234DDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235BDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235DDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233HBDCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8233HDDCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8234HBDCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8234HDDCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8235HBDCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8235HDDCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8233HBDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233HDDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234HBDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234HDDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235HBDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235HDDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8253CBDCG-DG	IGBT/MOSFET/SiC	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8253CDDCG-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8254CBDCG-DG	IGBT/MOSFET/SiC	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8254CDDCG-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8255CBDCG-DG	IGBT/MOSFET/SiC	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8255CDDCG-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8253CBDCP-DG	IGBT/MOSFET/SiC	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8253CDDCP-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8254CBDCP-DG	IGBT/MOSFET/SiC	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8254CDDCP-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8255CBDCP-DG	IGBT/MOSFET/SiC	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8255CDDCP-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8253CBBCL-DG	IGBT/MOSFET/SiC	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	3000	–40 ~ 125	SOP16	Reel/3000
SLMi8253CDBCL-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	3000	–40 ~ 125	SOP16	Reel/3000
SLMi8254CBBCL-DG	IGBT/MOSFET/SiC	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	3000	–40 ~ 125	SOP16	Reel/3000
SLMi8254CDBCL-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	3000	–40 ~ 125	SOP16	Reel/3000
SLMi8255CBBCL-DG	IGBT/MOSFET/SiC	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	3000	–40 ~ 125	SOP16	Reel/3000
SLMi8255CDBCL-DG	IGBT/MOSFET/SiC	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	3000	–40 ~ 125	SOP16	Reel/3000

Part Number	Power Switch	IOH/IOL (A)	Output VCC/VDD (V)	Input VCC (V)	Prop. Delay（ns）	Split Out	ASC	Soft Turn Off	CMTI (kV/μs) Min.	VISO(Vrms)	Operating Temp （℃）	Package Group	Packing/QTY	Download
SiLM59xx系列（30V, 12A 帶主動保護的單通道隔離驅動器）														下載
SiLM5932SHOCG-DG	IGBT/SiC	12.0/12.0	13-30	3-5.5	90	Y	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM5992SHCG-DG	IGBT/SiC	12.0/12.0	13-30	3-5.5	90	Y	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM5991SHCG-DG	IGBT/SiC	12.0/12.0	13-30	3-5.5	90	-	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM5932SHOCG-AQ	IGBT/SiC	12.0/12.0	13-30	3-5.5	90	Y	Y	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM5992SHCG-AQ	IGBT/SiC	12.0/12.0	13-30	3-5.5	90	Y	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM5991SHCG-AQ	IGBT/SiC	12.0/12.0	13-30	3-5.5	90	-	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM585x系列（30V, 3.0A 帶主動保護的單通道隔離驅動器）														下載
SiLM5851NHCG-DG	IGBT/SiC	3.0/6.0	13-30	3-5.5	90	-	-	-	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM5852SHCG-DG	IGBT/SiC	3.0/6.0	13-30	3-5.5	90	Y	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SiLM5852SHCG-AQ	IGBT/SiC	3.0/6.0	13-30	3-5.5	90	Y	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500

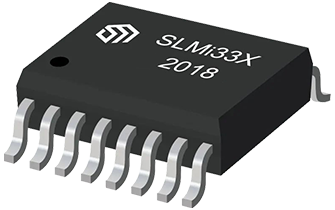

SLMi33x系列（40V, 1.5A - 4A 兼容光耦的單通道帶保護功能的隔離驅動器）														下載
SLMi330HCG-DG	IGBT/SiC	1.5/1.5	14-40	3-18	80	-	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi330CG-DG	IGBT/SiC	1.5/1.5	14-40	3-18	80	-	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi331CG-DG	IGBT/SiC	1.5/1.5	14-40	3-18	80	-	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi331HCG-DG	IGBT/SiC	1.5/1.5	14-40	3-18	80	-	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi332CG-DG	IGBT/SiC	2.5/2.5	14-40	3-18	80	-	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi332HCG-DG	IGBT/SiC	2.5/2.5	14-40	3-18	80	-	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi333CG-DG	IGBT/SiC	2.5/2.5	14-40	3-18	80	-	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi333HCG-DG	IGBT/SiC	2.5/2.5	14-40	3-18	80	-	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi334HCG-DG	IGBT/SiC	4.0/4.0	14-40	3-18	80	-	-	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi335CG-DG	IGBT/SiC	4.0/4.0	14-40	3-18	80	-	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi335HCG-DG	IGBT/SiC	4.0/4.0	14-40	3-18	80	-	-	Y	150	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi334CG-DG	IGBT/SiC	4.0/4.0	14-40	3-18	80	-	-	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500

Part Number	Power Switch	Feature	Input VCC (V)	IOH/IOL(A)	Output VCC/VDD (V)	Prop. Delay (ns)	CMTI (kV/μs) Min.	VISO(Vrms)	Operating Temp (℃)	Package Group	Packing/QTY	Download

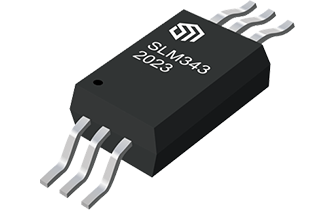

SLM34x系列（40V, 1A - 4A 兼容光耦的單通道隔離驅動器）												下載
SLM340CK-DG	IGBT/MOSFETs	-	-	1.0/1.0	14 ~ 40	90	150	5000	–40 ~ 125	SOP6W	Reel/1000
SLM341CK-DG	IGBT/MOSFETs	-	-	3.0/3.0	14 ~ 40	90	150	5000	–40 ~ 125	SOP6W	Reel/1000
SLM343CK-DG	IGBT/MOSFETs	-	-	4.0/6.0	14 ~ 40	90	150	5000	–40 ~ 125	SOP6W	Reel/1000
SLM345CK-DG	IGBT/MOSFETs	-	-	1.0/1.0	10 ~ 40	90	150	5000	–40 ~ 125	SOP6W	Reel/1000
SLM346CK-DG	IGBT/MOSFETs	-	-	3.0/3.0	10 ~ 40	90	150	5000	–40 ~ 125	SOP6W	Reel/1000
SiLM5350系列（單通道 30V, 10A 隔離柵極驅動器）												下載
SiLM5350SDBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SBBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SABCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SGBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RDBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RBBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RABCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RGBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HDBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HBBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HABCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HGBCA-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MDBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MBBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MABCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MGBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FDBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FBBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FABCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FGBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PDBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PBBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PABCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PGBCA-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SDDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SBDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SADCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SGDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RDDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RBDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RADCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RGDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HDDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HBDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HADCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HGDCM-DG	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MDDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MBDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MADCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MGDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FDDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FBDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FADCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FGDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PDDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PBDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PADCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PGDCM-DG	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SDBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SBBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SABCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SGBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RDBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RBBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RABCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350RGBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HDBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HBBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HABCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350HGBCA-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MDBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MBBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MABCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350MGBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FDBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FBBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FABCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350FGBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PDBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PBBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PABCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350PGBCA-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	3000	–40 ~ 125	SOP8	Reel/2500
SiLM5350SDDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SBDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SADCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350SGDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RDDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RBDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RADCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350RGDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HDDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	13 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HBDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	9 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HADCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	6 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350HGDCM-AQ	IGBT/MOSFET/SiC/GaN	Split Output	3 ~ 18	10.0/10.0	4 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MDDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MBDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MADCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350MGDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FDDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FBDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FADCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350FGDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PDDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	13 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PBDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	9 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PADCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	6 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000
SiLM5350PGDCM-AQ	IGBT/MOSFET/SiC/GaN	Miller Clamp	3 ~ 18	10.0/10.0	4 ~ 30	80	150	5000	–40 ~ 125	SOP8W	Reel/1000

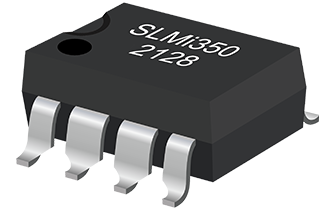

SLMi350（40V, 4A 兼容光耦的單通道隔離驅動器）												下載
SLMi350DB-DG	IGBT/MOSFETs	-	-	4.0/7.0	14 ~ 40	80	150	3750	–40 ~ 125	SMP8	Reel/1000
SiLM534xAT系列（40V, 1A - 4A 兼容光耦的單通道隔離驅動器）												下載
SiLM5340ATCR-DG	IGBT/MOSFETs	-	-	1.0/1.5	14 ~ 40	75	150	5000	–40 ~ 125	SOP6W-T	Reel/1000
SiLM5341ATCR-DG	IGBT/MOSFETs	-	-	3.0/4.5	14 ~ 40	75	150	5000	–40 ~ 125	SOP6W-T	Reel/1000
SiLM5343ATCR-DG	IGBT/MOSFETs	-	-	4.0/6.0	14 ~ 40	75	150	5000	–40 ~ 125	SOP6W-T	Reel/1000
SiLM5345ATCR-DG	IGBT/MOSFETs	-	-	1.0/1.5	10 ~ 40	75	150	5000	–40 ~ 125	SOP6W-T	Reel/1000
SiLM5346ATCR-DG	IGBT/MOSFETs	-	-	4.0/6.0	10 ~ 40	75	150	5000	–40 ~ 125	SOP6W-T	Reel/1000

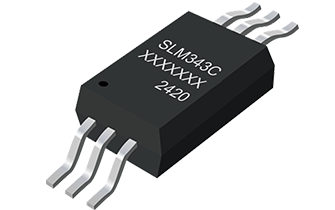

SLM34xC系列（40V, 1A - 4A 兼容光耦的單通道隔離驅動器）												下載
SLM340CCK-DG	IGBT/MOSFETs	-	-	1.0/1.5	14 ~ 40	75	150	5000	–40 ~ 125	SOP6W	Reel/1000
SLM341CCK-DG	IGBT/MOSFETs	-	-	3.0/4.5	14 ~ 40	75	150	5000	–40 ~ 125	SOP6W	Reel/1000
SLM343CCK-DG	IGBT/MOSFETs	-	-	4.0/6.0	14 ~ 40	75	150	5000	–40 ~ 125	SOP6W	Reel/1000
SLM345CCK-DG	IGBT/MOSFETs	-	-	1.0/1.5	10 ~ 40	75	150	5000	–40 ~ 125	SOP6W	Reel/1000
SLM346CCK-DG	IGBT/MOSFETs	-	-	4.0/6.0	10 ~ 40	75	150	5000	–40 ~ 125	SOP6W	Reel/1000

樣片申請

岛国aaaa级午夜福利片-岛国av动作片在线观看-岛国av无码一区二区三区-岛国搬运www久-岛国大片-岛国大片在线免费观看

隔離驅動

相關產品

產品選型表
